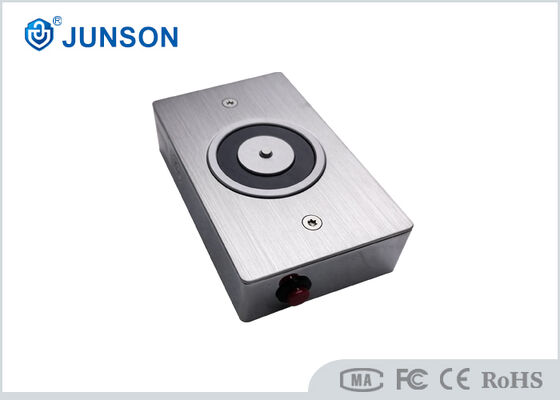

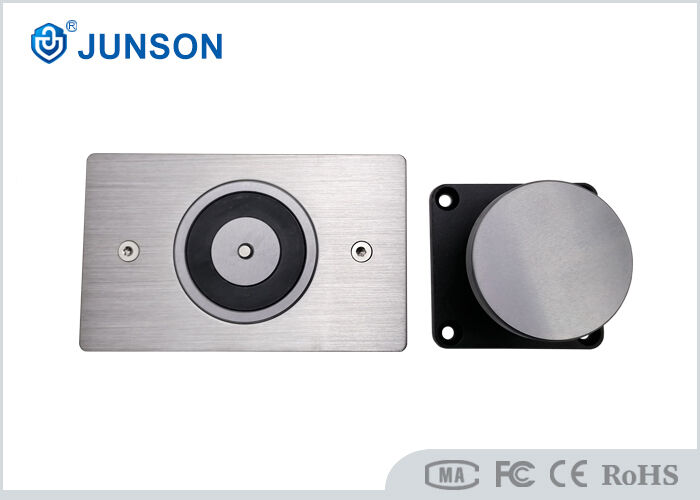

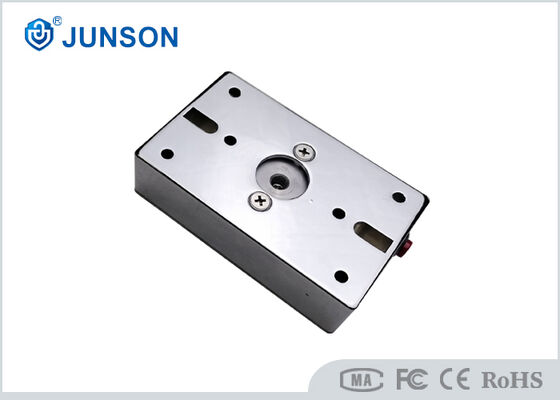

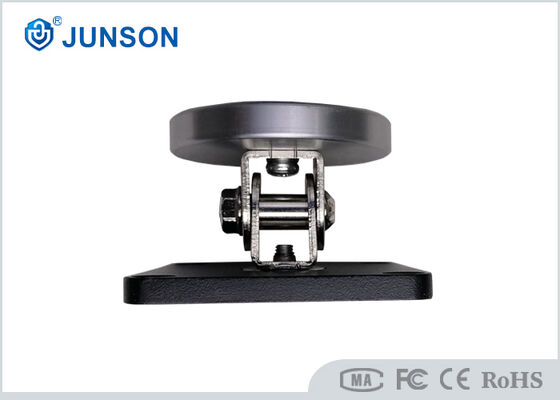

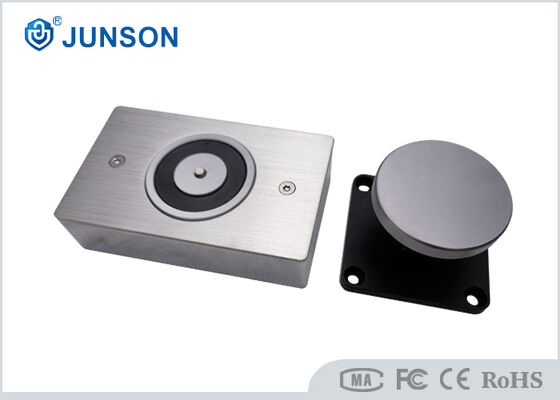

120 lbs Wall-Mounted Door Holder – Heavy-Duty Stainless Steel Design
Produktdetails:
| Herkunftsort: | China |
| Markenname: | JUNSON |
| Zertifizierung: | CE/FCC |
| Modellnummer: | JS-H901 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 10 Stück |
|---|---|
| Preis: | Verhandelbar |
| Verpackung Informationen: | Im Karton verpackt |
| Lieferzeit: | 2-7 Werktage nach Eingang Ihrer Zahlung |
| Zahlungsbedingungen: | T/T, Paypal oder Western Union im Voraus |
| Versorgungsmaterial-Fähigkeit: | 5000 Stück pro Monat |
|
Detailinformationen |
|||
| Marke: | JUNSON | Modell: | JS-H901 |
|---|---|---|---|
| Temperatur: | -10°~55°C | Oberflächentemp.: | <20℃ |
| Beenden Sie den Fall: | Endbearbeitung durch Drahtziehen | Geeignet für: | Alle Arten von rauchdichten Einzel- und Doppeltüren |
| Gehäusematerialien: | Edelstahl 304, Drahtziehbearbeitung | Größe der Magnetplatte: | Durchmesser 55 mm |
Produkt-Beschreibung
Specifications
-
Dimensions: 114 × 70 × 29 mm (L × W × H)
-
Magnet Plate Size: Ø55 mm
-
Holding Force: 70 kg / 120 lbs
-
Operating Voltage: 12V DC or 24V DC (24V by special order)
-
Standby Current: 140 mA @ 12V, 70 mA @ 24V
-
Housing Material: 304 Stainless Steel with wire-drawn finish
-
Application: Suitable for all types of single and double smoke-proof doors
-
Armature Finish: Zinc plating
-
Color: Silver
-
Case Finish: Wire-drawn finish
-
Release Button: Manual red door release button
-
Surface Temperature: < 20°C
-
Operating Temperature: -10°C to 55°C
-
Operating Humidity: 0–90% RH
-
Net Weight: 1.0 kg
-
Standard Packing: 20 pcs per carton
-
Carton Size: 60 × 35 × 16.5 cm
-
Gross Weight: 23 kg
Features
-
High Holding Force: Colinear load tested to 70 kg (120 lbs) for reliable door holding performance.
-
Dual Voltage Support: Default 24V DC, adjustable to 12V DC as required.
-
Reverse Current Protection: Built-in MOV protects against reverse current and voltage spikes.
-
Low Power Consumption: Energy-efficient design that is environmentally friendly.
-
Manual Door Release: Integrated release button allows immediate door release when pressed.
-
Anti-Residual Magnetism: Ensures stable operation and prevents sticking.
-
Professional Construction: Dual insulated housing for enhanced safety and durability.
-
Fire Safety Function: Automatically releases and closes smoke-proof doors in case of fire.
-
Flexible Installation: Suitable for floor mounting or glass door applications.
-
Fail-Safe Operation: Door is released automatically when power is cut.
